Description

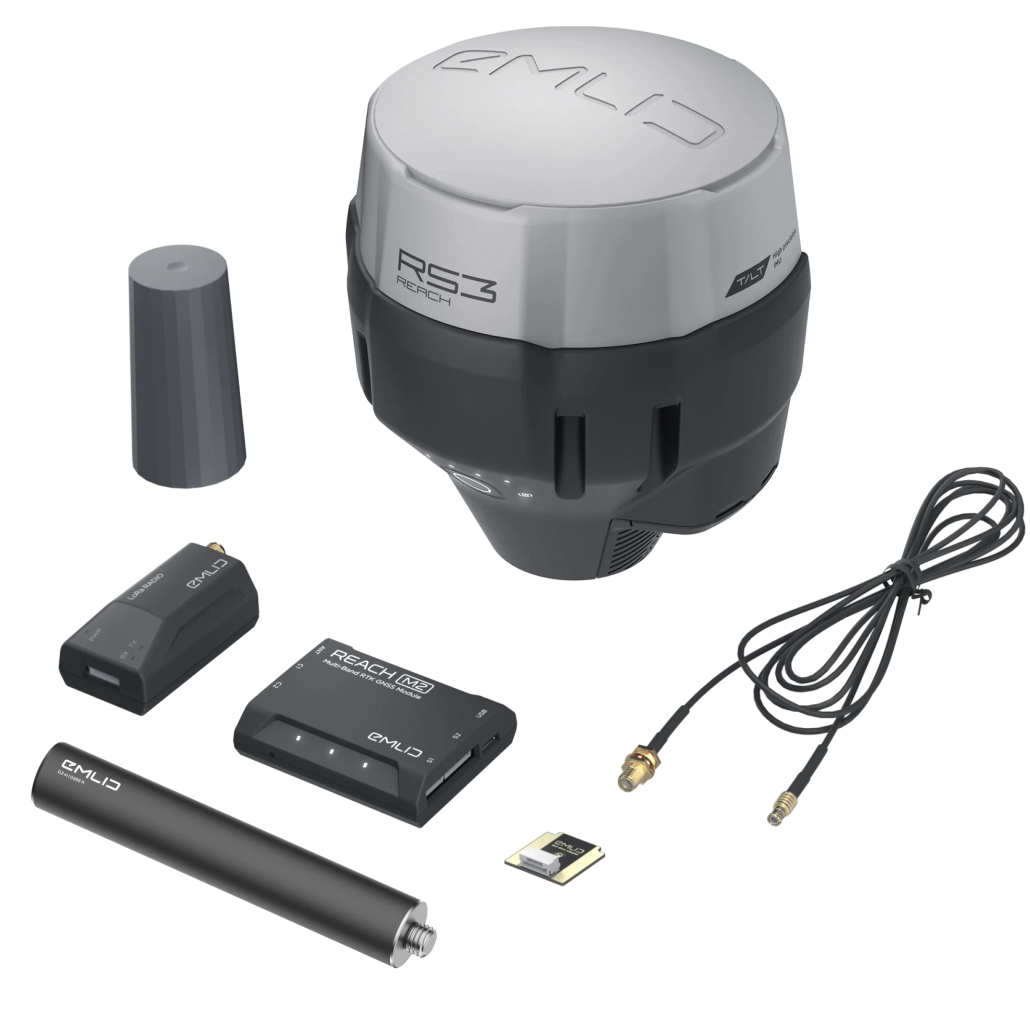

The Reach M2 combined with the Reach RS3 Base station, and the Reach LoRa Radio for M2
A complete precision UAV solution that will give you accurate and precise UAV mapping capabilities.
The Reach M2 is a compact and lightweight multi-band RTK module for real-time navigation and PPK mapping. The M2 tracks GPS/QZSS (L1, L2), GLONASS (L1, L2), BeiDou (B1, B2), Galileo (E1, E5) and SBAS (L1C/A) and gets fixed solution almost instantly. Reach M2 allows working over longer baselines (compared to the single-frequency Reach M+), up to 60 km in RTK and up to 100 km in PPK mode.
LoRa radio
Allows Reach M2 to receive real-time corrections from Reach RS2.
- Frequency: 862-1020 MHz
- Output power: 100 mW
- Transmission range: up to 8 km
- Antenna connector: RP-SMA
M2: Designed for UAV Applications

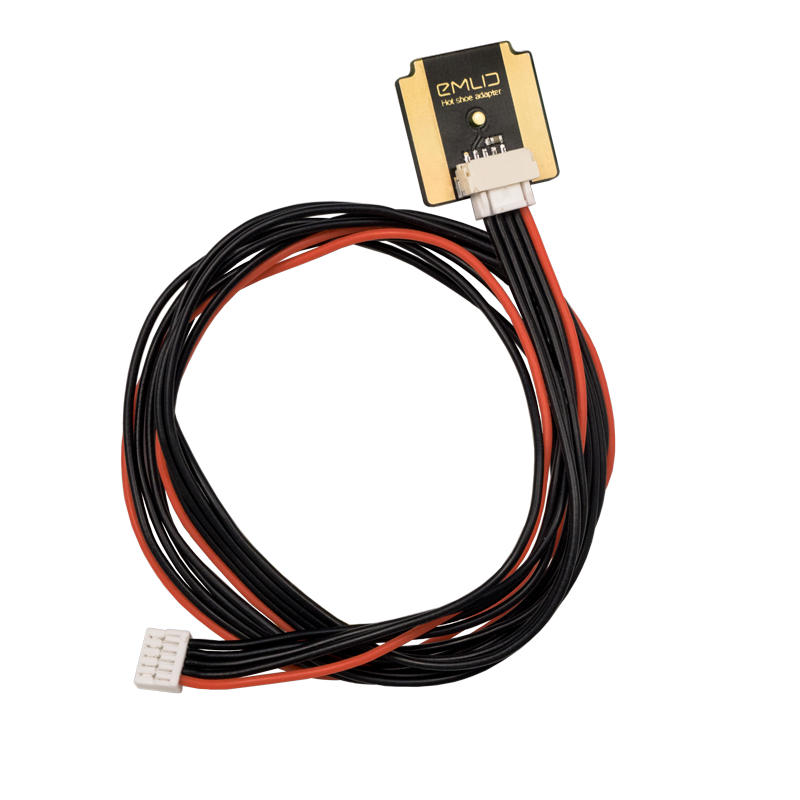

Being compact, Reach M2 can be easily integrated into almost any UAV platform. Reach M2 connects to a camera via hot shoe and records the location of each photo with the update rate up to 20 Hz. Ultimately, it produces more detailed and consistent data set for the further georeferencing at various professional mapping software.
Helical GNSS Antenna
The modern helical antenna compliments Reach M2 and operates across the same satellite constellations, so you won’t miss a satellite. Helical antennas eliminate the need for a large ground plane yet allows to achieve high positioning accuracy.
Configuration and Logs Management with Emlid Flow
Reach M2 can be configured via Emlid Flow app, available both for Android and iOS. The app allows to set up RTK settings, collect raw data in RINEX format, and control all the features of the device.

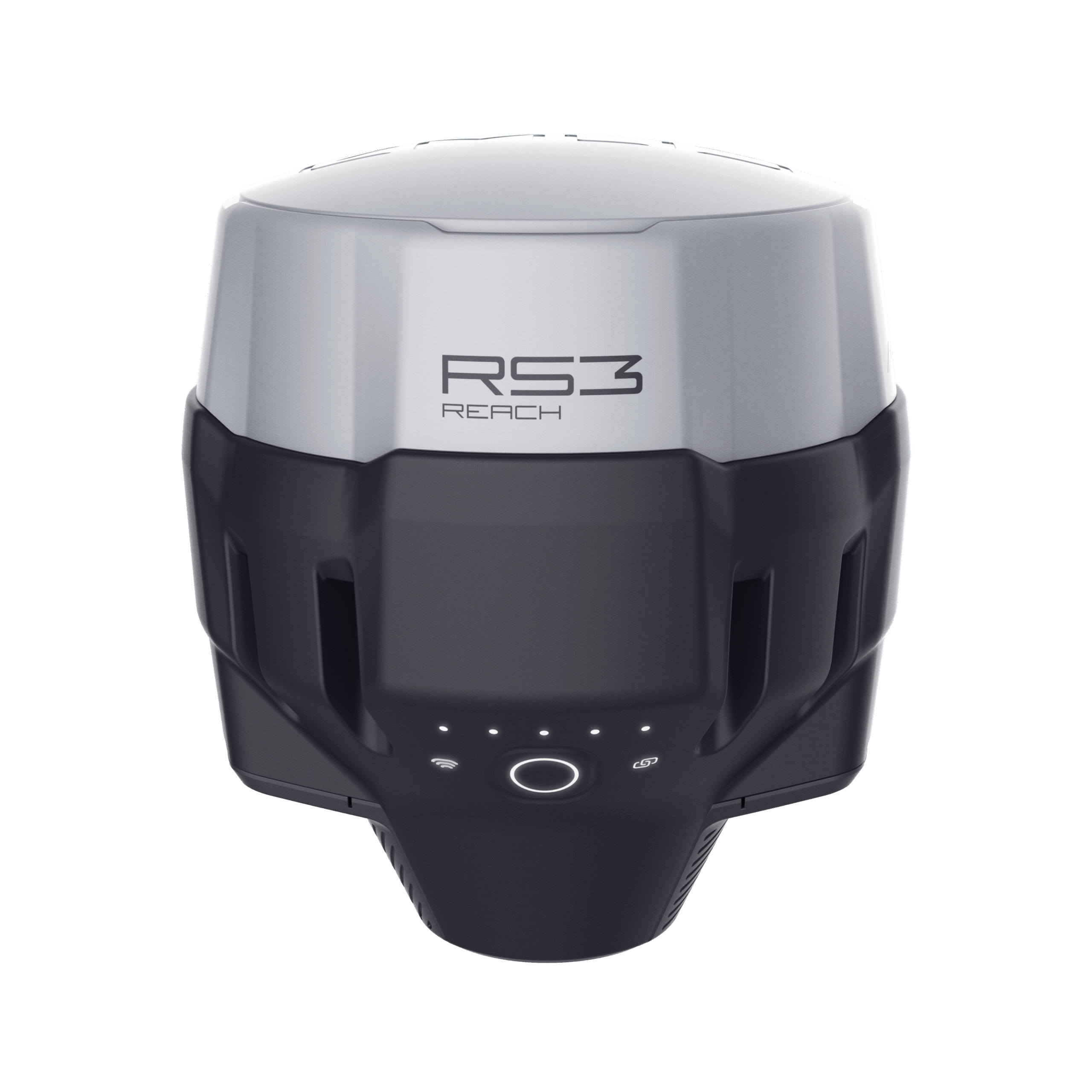

Use with the Reach RS3 base station
The IMU-based tilt compensation system in the Reach RS3 enables you to make measurements with up to 60 degrees of tilt while still staying within 20 mm of accuracy. Reach RS3 continuously measures and corrects tilt in real-time to keep you on target.

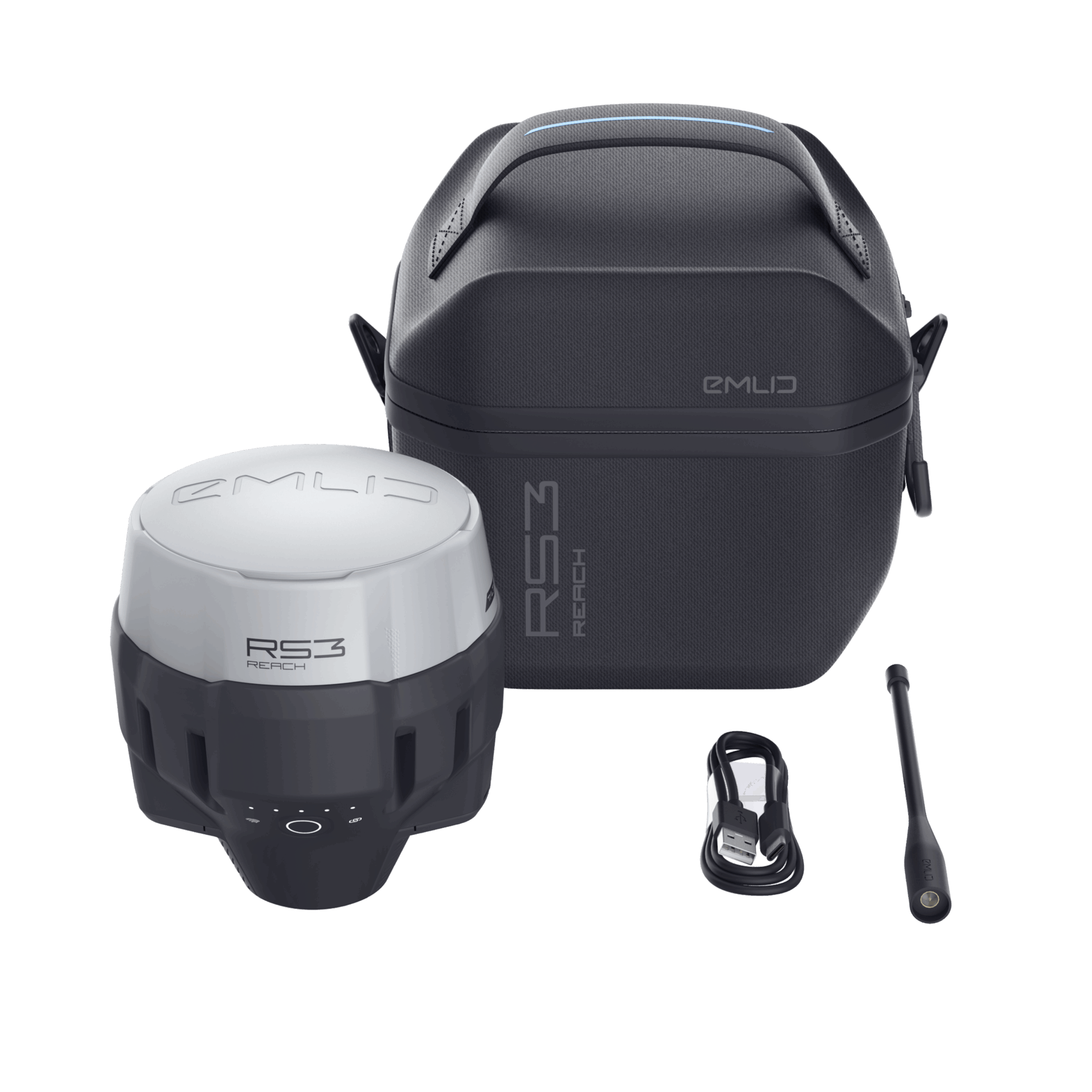

Reach RS3 is engineered to be waterproof and impact-resistant. The Li-Ion battery battery is designed for 18 hours work on one charge, regardless of weather conditions. No need to carry spare batteries. Charge from a USB wall charger or a power bank over USB-C.
Configure your Reach RS3 with the easy-to-use Emlid Flow app for iOS and Android, used to control all the features of the RS3. Create projects, collect and stakeout points, import and export geodata in industry standard formats such as CSV, DXF, and ESRI Shapefile.
